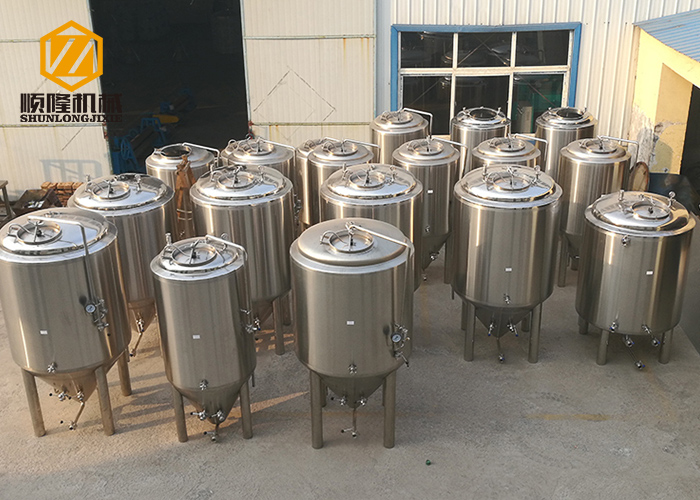

Bright beer tank
It is used for carbonation of beer, as a serving tank. we offer Bright Beer tanks that are ideal for nanobreweries, microbreweries and brewpubs, restaurants. These tanks can be used for storing and serving carbonated beer and eliminate the hassle of cleaning beer kegs. Like all of our products, we only use high quality sanitary fittings and hardware. Many sizes are possible, if you don't see the size you want, please contact us with your needs.
If you want, we can install a sight glass on brite beer tank for you to observe the volume of beer in the tank.
Details
| Description of goods | Brite beer tank |
| Capacity | 100L-100HL |
| Material | SUS304 or SUS304&red copper |
| Warranty | Three years for main equipment |
| MOQ | 1set |
| Delivery time | 15-40 working days, based on the capacity and quantity |
| Supply ability | More than 300pcs, based on the capacity and quantity |
| Package | First layer plastic membrane;
Second layer foam plastic;
Third layer wood board;
If necessery, fumigation-free wood box |
| Payment term | T/T |
| Trade term | FOB/EXW |
| Port of loading | Qingdao |
Working Capacity: 500l
Diameter: 910mm
Overall Height: 2200mm
Net weight: 270kg
Manhole: Top manhole
Material: 304 Stainless steel
Description:
304 stainless steel unless otherwise noted
The tank is designed for 15 psig
Flange and top top and bottom
Two pits, a cooling jacket (one at the bottom, one on the side wall) c / w side of the installed glycol port
The cooling jacket is designed for 35 psig.
Sampling cock
Carbonized mouth
Side placed in / raised sidewalk
Pressure / vacuum safety valve
Pressure gauge assembly
CIP arm fixed 316SS spray ball
With a calibrated strip
Polished stainless steel pins with adjustable feet
The side walls and the bottom are insulated and coated with # 4 finishing stainless steel
Dimension
| Capacity | Material | Overall Size | Inner | External |
| 300L | SUS304 Stainless steel | φ860×2000 | 3mm | 2mm |
| 400L | φ910×1840 |
| 500L | φ1060×2200 |
| 600L | φ1060×2200 |
| 800L | φ1260×2400 |
| 1000L | φ1360×2730 |
| 1500L | φ1460×2900 |
| 2000L | φ1560×2900 |
| More larger type | Avaialbe
|
Fermenter Configuration
Design pressure 45 psi (3bar); working pressure 15psi (1bar)
4 stainless steel legs with leveling footpads
Interior shell: 304 stainless steel, thickness 3mm
Exterior shell: 304 stainless steel, thickness 2mm
Interior and exterior finish bright polish to 0.6~0.8, hygiene surface
60 degree cone bottom, other angles can be specified during the design process
Combined drain extensions and beer port in cone are standard
25% headspace, unless a different volume is requested
Top manway or side manway door
Dual zone in sidewall and cone dimple cooling jacket with glycol inlet and outlet
Polyurethane insulation thickness 80mm for cooling jacket on side and bottom
Fully welded exterior shell
Non welding CIP arm and rotating 360 degree reach spray ball
Solenoid relief valve, pressure relief valve (safe valve) are standard
Pressure gauge
Temperature sensor well
Sanitary sample valve and port
All clamps and gaskets to attach all accessories
Tank complete with piping, fittings, sanitary valves and all parts.
Carbonation port is available for special request (stone not included)
Ladder hooks is available for special request
Dry hop ports and/or hop bag hooks in any fermenter of any size for special request
